High-speed Drill Point Die
Made of tungsten carbide steel material, it consists of two mold pieces and is specifically designed for the tail clamping process of drill tail forming machines. Under normal settings and usage conditions, it delivers superior production capacity, enhances manufacturing efficiency, reduces costs, and saves time on mold replacement and machine adjustments. Most importantly, it serves as a critical component of quality control, improving product performance and quality.

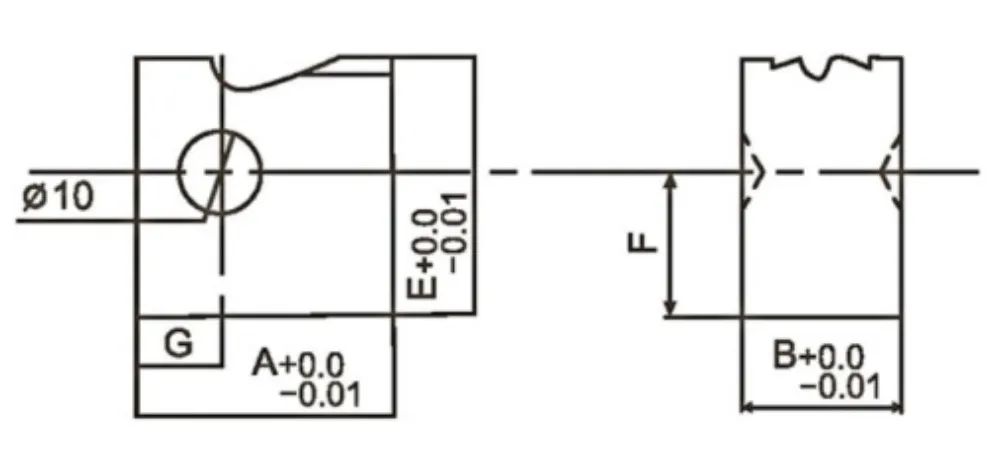

| DRILL POINT DIES | |||||
| DIE STYLE | A | B | E | F | G |
| STYLEⅠ/MA | 31.75 | 12.70 | 24.40 | 11.40 | 10.70 |
| STYLEⅡ/MB | 31.75 | 20.00 | 35.00 | 18.00 | 10.70 |
| STYLEⅢ/MC | 45.00 | 30.00 | 35.00 | 16.00 | 16.00 |
 |
 |
| SELF DRILLING SCRES POINT FORMING DIES SPEC | |||||
| NO.1DRILL POINT DIES | |||||

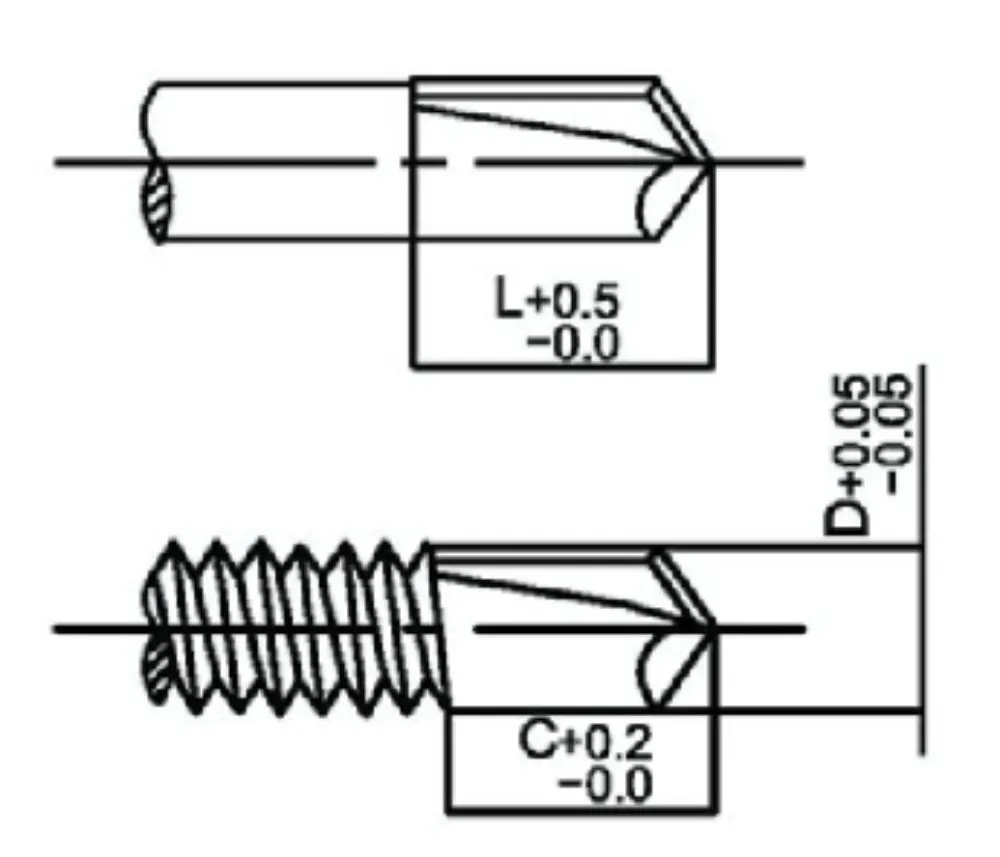

| DP DIE MODEL | DRILL DIA (DΦ) | FLUTE LENGTH(L) | DRILL LENGTH(C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L1-22 | 2.2 | 2.7 | 1.7 | 1 | STYLEⅠSTYLEⅡ |
| -23 | 2.3 | ||||
| L1-27 | 2.7 | 3.4 | 2.4 | 1.5 | |
| -28 | 2.9 | ||||
| -29 | 2.9 | ||||
| -30 | 3 | ||||
| -31 | 3.1 | ||||
| L1-32 | 3.2 | 4.2 | 3.2 | 2.1 | |
| -33 | 3.3 | ||||
| -34 | 3.4 | ||||
| -35 | 3.5 | ||||
| -36 | 3.6 | ||||
| L1-37 | 3.7 | 5 | 4 | 2.8 | |
| -38 | 3.8 | ||||
| -39 | 3.9 | ||||
| -40 | 4 | ||||
| -41 | 4.1 | ||||
| L1-43 | 4.3 | 6 | 5 | 3.6 | STYLEⅡ |
| -45 | 4.5 | ||||
| -47 | 4.7 | ||||
| L1-49 | 4.9 | 7.2 | 6.2 | 4.5 | |
| -51 | 5.1 | ||||
| -53 | 5.3 | ||||
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
| NO.2DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (DΦ) | FLUTE LENGTH(L) | DRILL LENGTH(C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L2-22 | 2.2 | 3.2 | 2.2 | 1.5 | STYLEⅠSTYLEⅡ |
| -23 | 2.3 | ||||
| L2-27 | 2.7 | 4 | 3 | 2.1 | |
| -28 | 2.8 | ||||
| -29 | 2.9 | ||||
| -30 | 3 | ||||
| -31 | 3.1 | ||||
| L2-32 | 3.2 | 4.9 | 3.9 | 2.8 | |
| -33 | 3.3 | ||||
| -34 | 3.4 | ||||
| -35 | 3.5 | ||||
| -36 | 3.6 | ||||
| L2-37 | 3.7 | 5.8 | 4.8 | 3.6 | |
| -38 | 3.8 | ||||
| -39 | 3.9 | ||||
| -40 | 4 | ||||
| -41 | 4.1 | ||||
| L2-43 | 4.3 | 6.9 | 5.9 | 4.5 | STYLEⅡ |
| -45 | 4.5 | ||||
| -47 | 4.7 | ||||
| L2-49 | 4.9 | 8 | 7 | 5.3 | |
| -51 | 5.1 | ||||
| -53 | 5.3 | ||||
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
| NO.3DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (DΦ) | FLUTE LENGTH(L) | DRILL LENGTH(C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L3-27 | 2.7 | 4.7 | 3.7 | 2.8 | STYLEⅠSTYLEⅡ |
| -28 | 2.8 | ||||
| -29 | 2.9 | ||||
| -30 | 3 | ||||
| -31 | 3.1 | ||||
| L3-32 | 3.2 | 5.7 | 4.7 | 3.6 | |
| -33 | 3.3 | ||||
| -34 | 3.4 | ||||
| -35 | 3.5 | ||||
| -36 | 3.6 | ||||
| L3-37 | 3.7 | 6.7 | 5.7 | 4.5 | |
| -38 | 3.8 | ||||
| -39 | 3.9 | ||||
| -40 | 4 | ||||
| -41 | 4.1 | ||||
| L3-43 | 4.3 | 7.7 | 6.7 | 5.3 | |
| -45 | 4.5 | ||||
| -47 | 4.7 | ||||
| L3-49 | 4.9 | 9.8 | 8 | 6.3 | STYLEⅡ |
| -51 | 5.1 | ||||
| -53 | 5.3 | ||||
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
| NO.4DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (DΦ) | FLUTE LENGTH(L) | DRILL LENGTH(C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L4-43 | 4.3 | 8.7 | 7.7 | 6.3 | STYLEⅡSTYLEⅢ |
| -45 | 4.5 | ||||
| -47 | 4.7 | ||||
| L4-49 | 4.9 | ||||
| -51 | 5.1 | ||||
| -53 | 5.3 | 11.7 | 10.7 | 9 | |
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
| NO.5 DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (DΦ) | FLUTE LENGTH(L) | DRILL LENGTH(C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L5-49 | 4.9 | 14.7 | 13.7 | 12 | STYLEⅢ |
| -51 | 5.1 | ||||
| -53 | 5.3 | ||||
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
| NO.6 DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (DΦ) | FLUTE LENGTH(L) | DRILL LENGTH(C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L6-49 | 4.9 | 17.7 | 16.7 | 15 | STYLEⅢ |
| -51 | 5.1 | ||||
| -53 | 5.3 | ||||
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
